Products(Molecular orientation meter)
■Features
1. Non-contact, non-destructive measurement
2. It can be transparent or opaque.
3. Fully automatic and highly accurate
4. Complex permittivity (dielectric constant, dielectric loss factor) can be measured
■Target of measurement
1. Film, sheet
2. Paper, non-woven fabric, prepreg
3. Foamed sheet
4. Ceramics
5. Rubber sheet
6. Fiber reinforced composite material(FRP)
7. Liquid crystal polymer(LCP), etc.
■Use
1. Anisotropy measurement of stretched film (analysis of bowing phenomenon)
2. Evaluation of liquid crystal polymer orientation
3. Measurement of complex permittivity of electronic materials
■Lineup
<MOA-8004>
◆Measurement frequency band: 4GHz
◆Measurement area…Φ65mm
◆Sample size… □95mm <t3mm
◆Measurement items
Alignment pattern measurement: Orientation angle, MOR, MOR_C, ε′, ⊿n
Dielectric constant pattern measurement: orientation angle, ε′, ε“
Resonance curve measurement: Resonance curve, Q factor
<MOA-8015>
◆Measurement frequency band: 12GHz / 15GHz / 17GHz
◆Measurement area…Φ18mm
◆Sample size: □35mm <t1.5mm
◆Measurement items
Alignment pattern measurement: Orientation angle, MOR, MOR_C, ε′, ⊿n

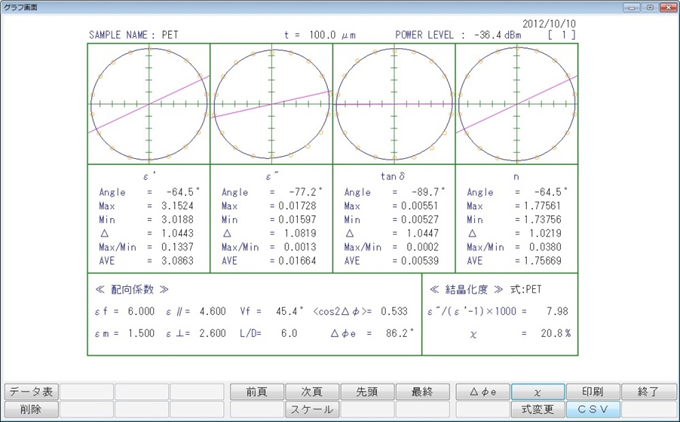

Dielectric constant pattern measurement: orientation angle, ε′, ε“

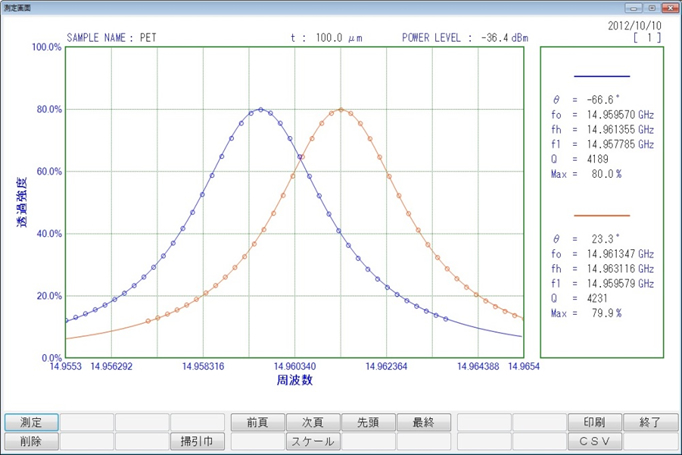

Resonance curve measurement: Resonance curve, Q factor

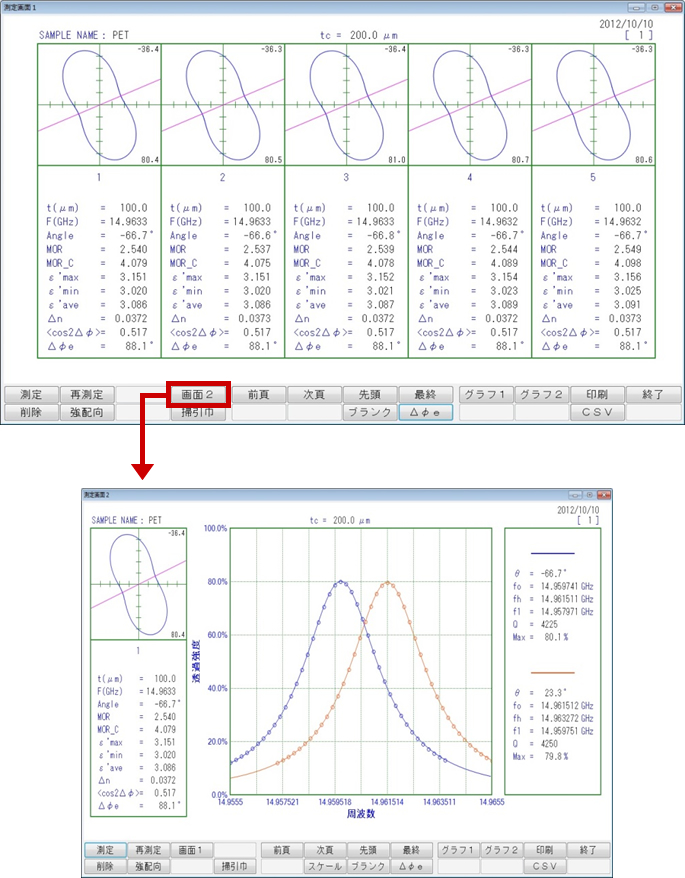

■Meas. example(Alignment pattern)
