BF-9: Multiple Functions Biosensor
Specific detection by enzyme reaction and easy operation based on the flow injection analysis.
- Rapid
Analysis time for a compound is at least 30 seconds. Two compounds analysis requires 60 to 90 seconds.
- Various Electrodes
More than 30 kinds of compounds can be measured by exchanging electrodes. It is possible to propose solutions for research and the quality control.
- Advanced analysis
Drifted data is corrected automatically, and can be approximated by linear or quadratic function with method of least squares.
- Touch panel operation
Intuitive and easy operation.
- Thermostat with Peltier
The system is possible to control the temperature of the measurement chamber precisely than any other thermostat.
- Various options
Manual injectors, high-speed samplers, on-line sampling system, waste fluid over flow monitoring sensor, buffer shortage monitoring sensor, etc.

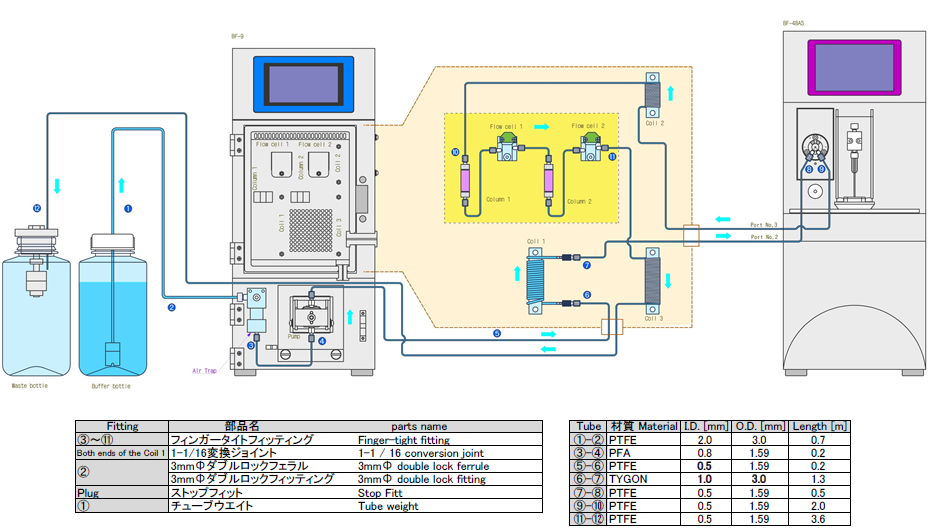

■System architecture
■Detection principle
The enzyme is fixed on the electrode or immobilized to the surface of the support.
The enzyme catalysis the measured object to hydrogen peroxide.
Then the hydrogen peroxide is electro chemically detected.
e.g. Glucose electrode
Product specification (PDF) >> Measurement item (PDF) >>
